Nucleic Acid Purification Instrument Rossetta 24
Nucleic Acid Purification Instrument Rossetta 24

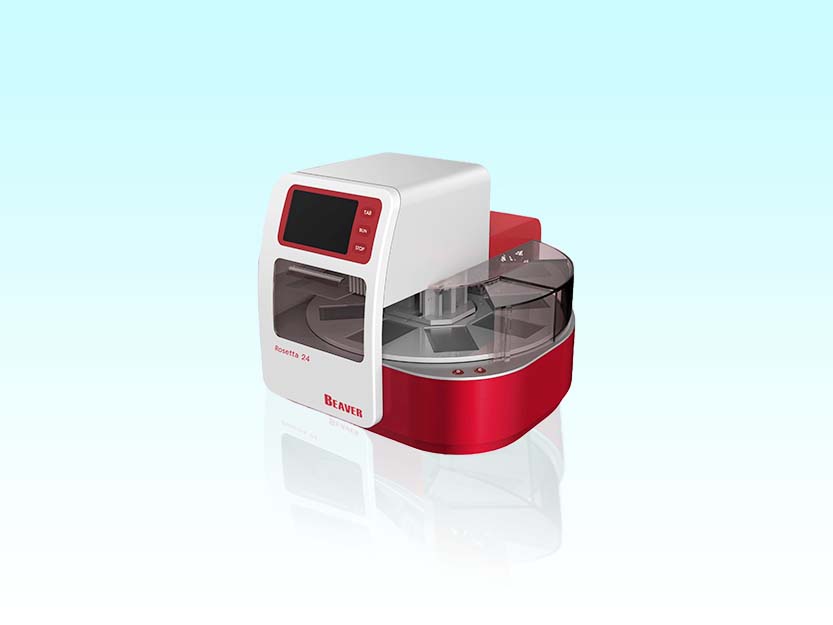

BeaverDevice™ Rosetta24 large-volume sample purifier is specially designed for purification of large-volume samples. It can conveniently and quickly purify biological samples such as nucleic acids and proteins. It can run 24 samples at a time and the maximum processing volume can reach 10mL. Equipped with magnetic bead nucleic acid purification kits, protein purification magnetic beads, immunomagnetic beads and other products independently developed by the Beaver team, the automated processing of biological samples can be easily and efficiently realized.
Product performance
| parameter | Rosetta 24 |
| principle | Magnetic rod method turntable type |
| Processing volume | 50μL-10mL |
| sample throughput | twenty four |
| Difference between purification holes | CV≤5% |
| Magnetic suction method | 3 adjustable magnetic suction methods |
| heating element | Room temperature to +120°C for lysis and elution. |
| Temperature accuracy | ±1℃ |
| Shake and mix | 10 speeds can be set |
| Operation interface | 7-inch large color touch screen, can be connected to an external mouse |
| internal procedures | The machine has 8 preset programs and can store 100 programs. |
| Program management | Create, edit, delete, and save programs |
| Instrument interface | USB port, Ethernet port |
| network | Expandable Ethernet remote control, wireless WiFi function |
| using electric | AC220V, 50Hz, 450VA |
| Operating temperature range | 10℃-40℃ |
| Operating humidity range | Below 80% |
Features
•Suitable for purification of large-volume biological samples such as nucleic acids and proteins
•Process 24 samples at one time, equipped with 24-well deep well plate, single well volume 15mL
•Maximum processing volume up to 10mL
